●Energy Consumption:
| VFD Motor | Barrel Heater(PE) | Hydraulic Motor | Die Head Heater | Max Energy Consumption |
| 11kW | 6kW | 5.5kW | 2~3.8k | 26.3kW |
●Technical Specification:
| Screw Diameter | Screw Ratio(Length/Diameter) | Screw Speed(50Hz) | Extrusion Output(PE) | Extruder Heater Clamp Stroke |
| 45mm | 24:1 | 15~76rpm | 30kg/h | 3 Zone |
| Clamp Stroke | Clamping Force(160Bar) | Dry Cycle | Cool Water Consumption | Machine Net Weight(Approx.) |
| 200mm | 6Tons | 3.8Sec | 1.5m³/min | 2.3Tons |

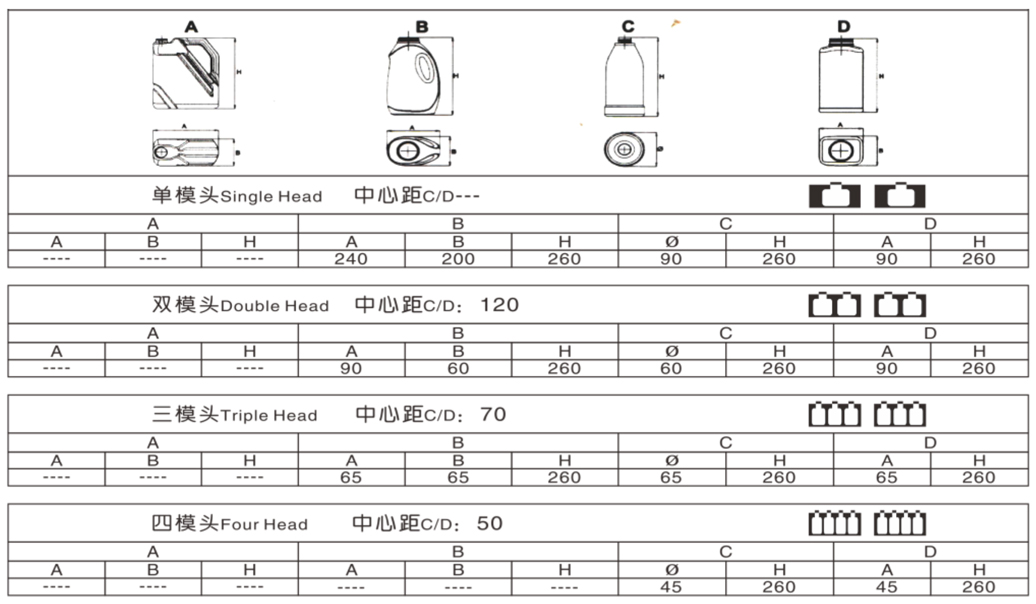

●Product Dimension:

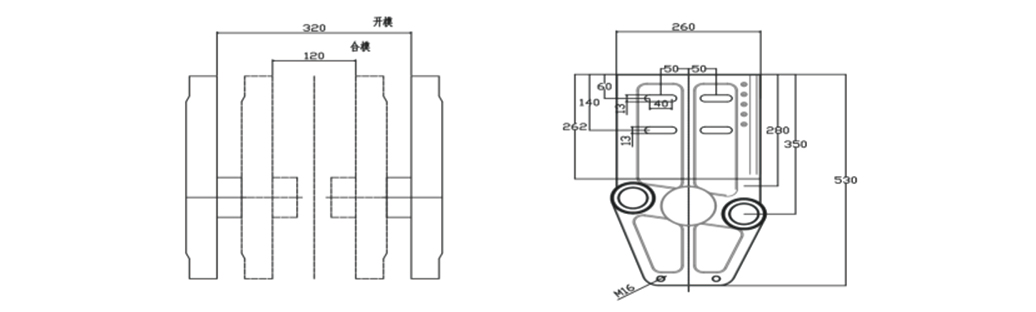

●Mold Installation Dimension:
●Product Information:
Dimension: J45-TS is compatible in producing product ranging from 10-1000ML.
Die Head Connection: Selectable options of single, double, triple, and four heads to satisfy different customers'production output requirements.
Speed: Dry cycle speed up to 3.8 sec. in normal conditions, a four-head blow molder cycle time is 8.4 sec and the production output can reach 80000 pieces per day.
Material: J45-TS is suitable for PE, PP, PETG, PVC, PA6, ABS, PCTG, AB, and other container production.
Energy-saving blowing extrusion and production pressure device: J45-TS is equipped with adiustable pressure and VFD control device which will reduce energy consumption by nearly 50%.

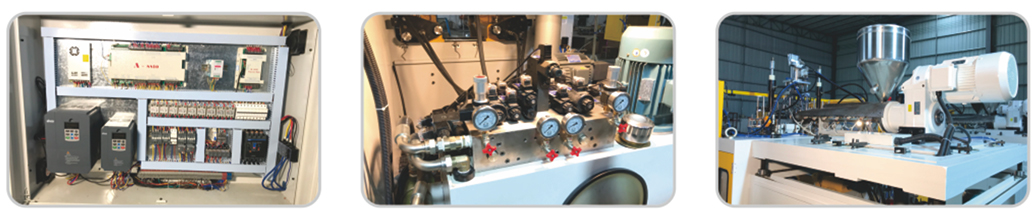

●Product Details:
